Marine Plumbing & Ventilation - Monitoring System

A marine tank monitoring system is a device that tracks fluid levels in onboard tanks — such as holding, freshwater, fuel, or waste tanks — and displays real-time readings so boaters always know what's on board. Most systems use sensors mounted to or inside the tank and connect to a display panel or mobile app.

Marine plumbing and ventilation monitoring systems are designed for boat owners who need reliable, real-time visibility into onboard fluid levels, including liveaboards, offshore cruisers, and anyone managing holding tanks, bilge water, or freshwater systems. These systems are especially useful on vessels where manual tank checks are difficult or unsafe.

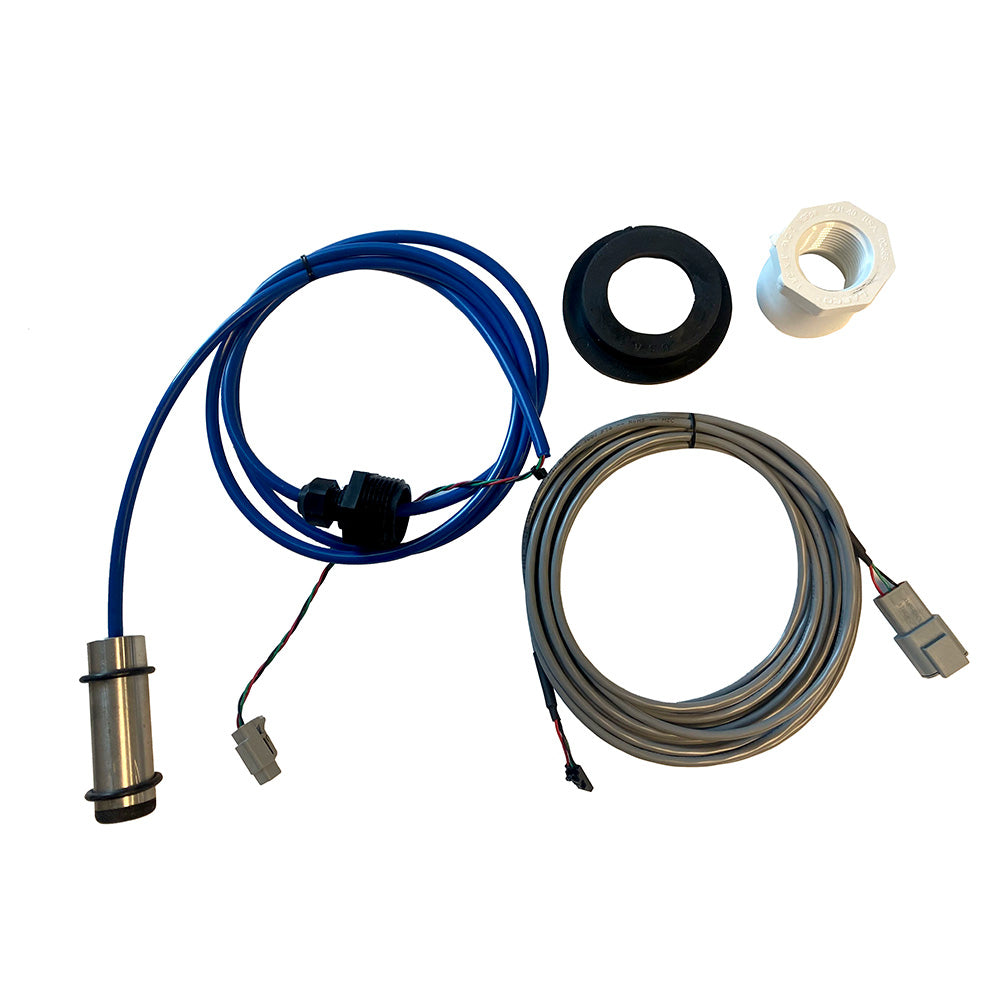

Start by mounting the tank sensor to the bottom or top of the tank depending on the sensor type, then pair or wire it to a compatible display or monitoring module. The sensor measures fluid level using ultrasonic, pressure, or electrical signals and transmits that data to a readout, control panel, or connected app in real time.

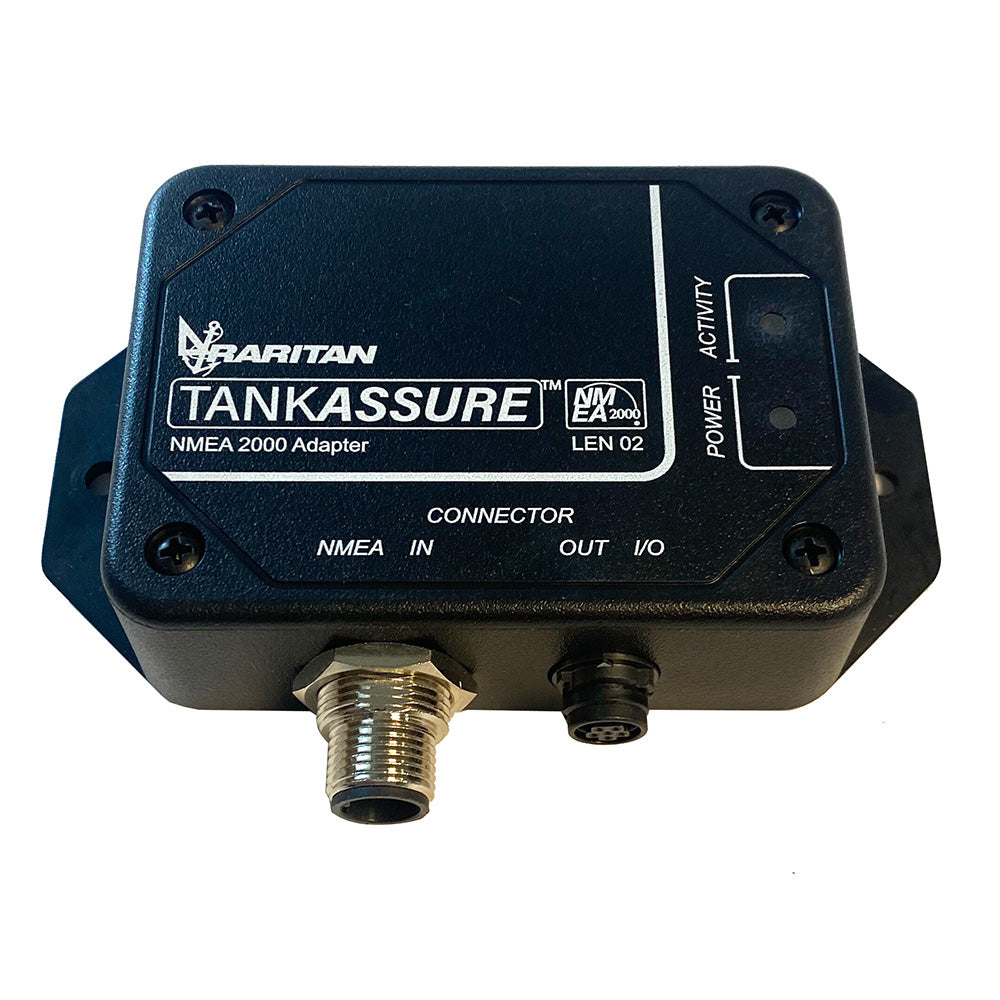

Yes, many marine tank monitoring systems are compatible with NMEA 2000 networks, which allows fluid level data to be shared across multiple onboard displays and chart plotters. Compatibility depends on the specific system and sensor configuration, so check whether an NMEA 2000 adapter is required for your setup before purchasing.

Marine monitoring systems can track a wide range of onboard fluids, including freshwater, wastewater, fuel, LPG, and other non-pressurized liquids depending on the sensor type selected. Some sensors are fluid-specific, while universal sensor options are designed to work with multiple liquid types across different tank materials.

A bilge water alarm is a safety device that triggers an alert when water in the bilge rises to a dangerous level, whereas a tank monitoring system continuously measures and displays fluid levels in designated storage tanks. Bilge alarms are reactive safety tools, while tank monitors provide ongoing level data for freshwater, waste, and fuel management.

Choosing the right marine tank monitoring system starts with identifying the number of tanks you need to monitor, the types of fluids stored, and whether you want wired or wireless Bluetooth connectivity. Also consider tank height, sensor compatibility with your tank material, and whether integration with an existing onboard display network is needed.

Yes, a marine tank monitoring system is worth it even on smaller boats because running out of freshwater or failing to detect a full holding tank can quickly turn a trip into an emergency. These systems remove the guesswork from tank management and are available in compact, affordable configurations suited to boats of all sizes.

No, many marine tank monitoring systems are designed for straightforward DIY installation, particularly wireless Bluetooth sensor models that attach to the outside of a tank without cutting or drilling. Wired systems or those integrating with NMEA 2000 networks may benefit from professional installation to ensure proper signal routing and display configuration.

Marine tank sensors should be inspected regularly for buildup, corrosion, or physical damage that could interfere with accurate level readings. Clean external sensor surfaces as recommended by the manufacturer, check all wiring connections for moisture intrusion, and verify calibration periodically — especially after replacing tanks or switching fluid types.
