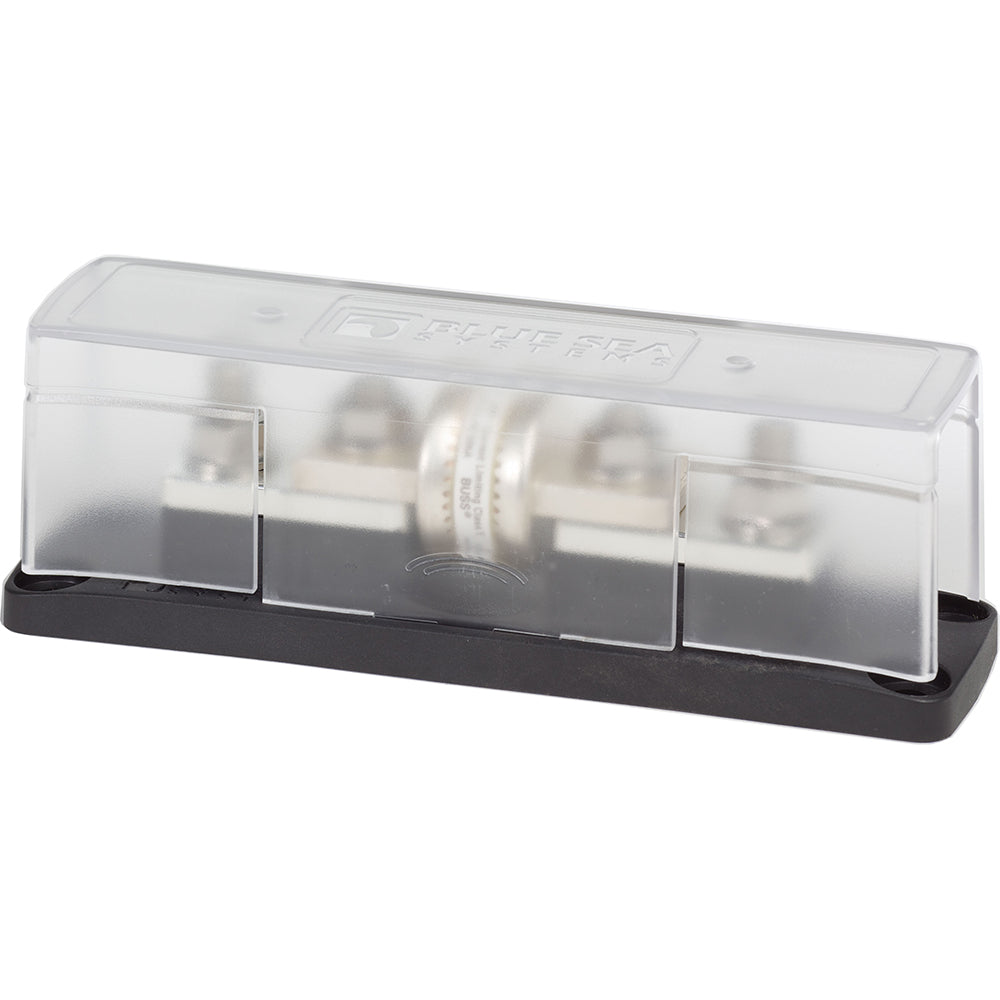

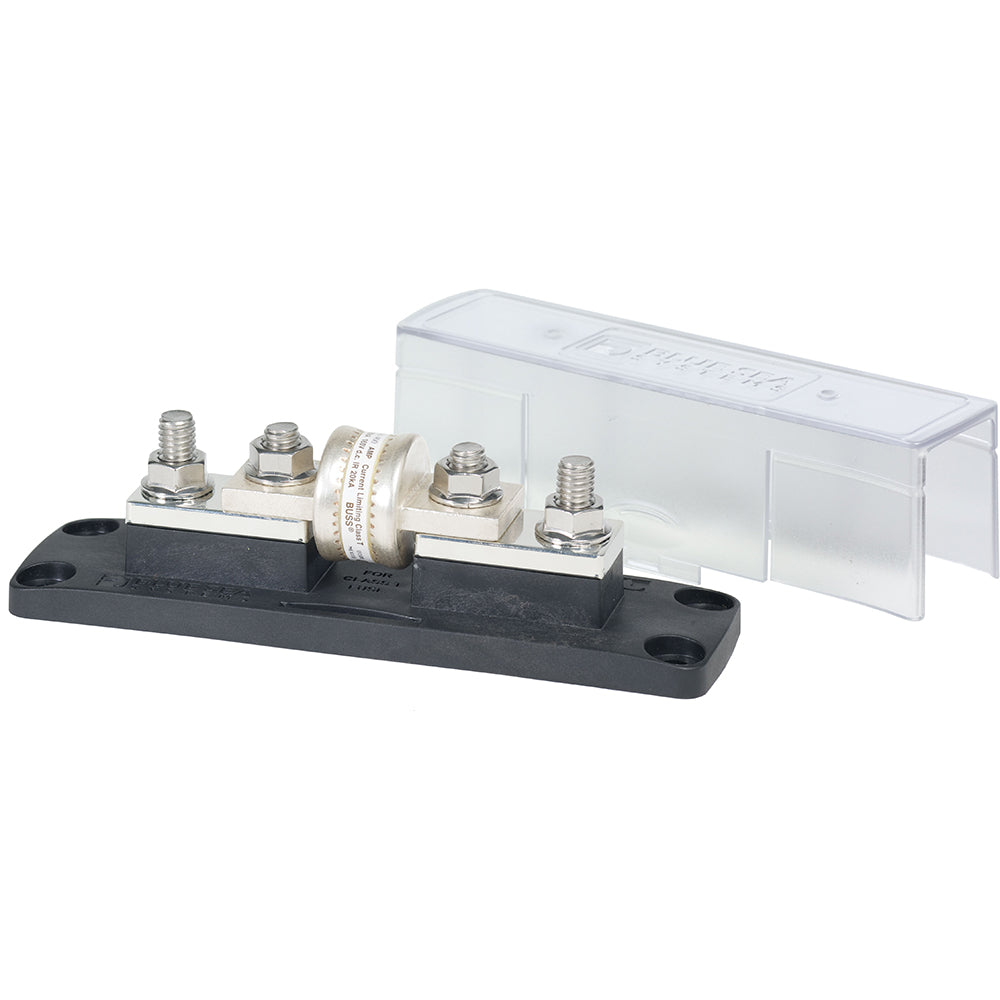

Blue Sea 5502 Fuse Block Class T 225-400 Amp

Fuse Block Class T 225-400 AMP
Part #: 5502

Features:

• Maximum Voltage: 160 Volts DC

• Maximum Amperage: 400 Amperes DC

• Maximum Torque: 190 in-lb (21.47 Nm) max.

• Terminal Stud Size: 3/8"-16 (M10)

• Mounting Holes: Accept 1/4" (M6) Screw

• Maximum Cable Size 4/0 AWG

• Fuse Mounting Blocks: Tin-Plated Copper

• Class T Fuses Available: 110-400 Amperes DC

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Fuse Type: Class T
• Type: Fuse Blocks
• Box Dimensions: 3"H x 8"W x 9"L WT: 1.1 lbs
• UPC: 632085055028
