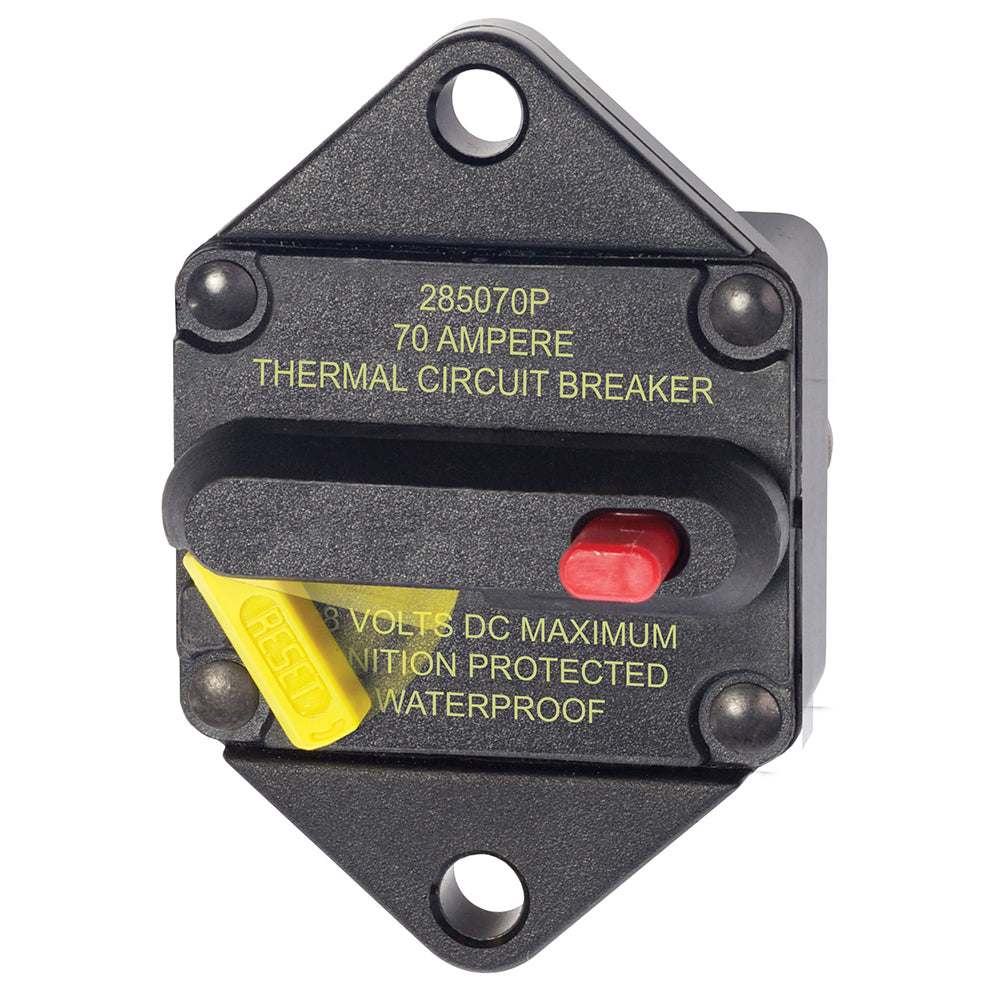

Blue Sea 7085 70 Amp Circuit Breaker Panel Mount 285 Series

285-Series Thermal Circuit Breaker Panel Mount - 70A
Part#7085

• Drop in replacement for 185-Series Circuit Breakers

• Visible reset lever shows open condition

• Ignition protected - Safe for installation aboard gasoline powered boats

• Meets SAE J1171 external ignition protection requirements

• Weather Resistant

• Combines switching and circuit breaker function into one unit

• "Trip Free" - cannot be held closed after trip

* Do not use for direct control of high inrush loads such as motor starting.

Specifications

Interrupt Ratingt3,000A @ 48V DC*
Maximum Voltage Ratingt48 Volts DC
Operating Temperature Ranget-40°C to 85°C
Circuit Breaker Type tThermally Responsive Bi-metal blade
Circuit Breaker ClasstType III - Switchable / Manual Reset - Trip Free
Terminal Stud SizetM6 (accepts 1/4" Ring Terminal)
Terminal Stud Torquet50 in-lb
Mounting HolestAccept 1/4" (M6) screw
Weight Lb (Kg) t0.33 lb (0.15 kg)

* AIC ratings achieved using SAE J1625

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Amperage: 70a
• Box Dimensions: 2"H x 5"W x 9"L WT: 0.3 lbs
• UPC: 632085070854

Brochure (pdf)
