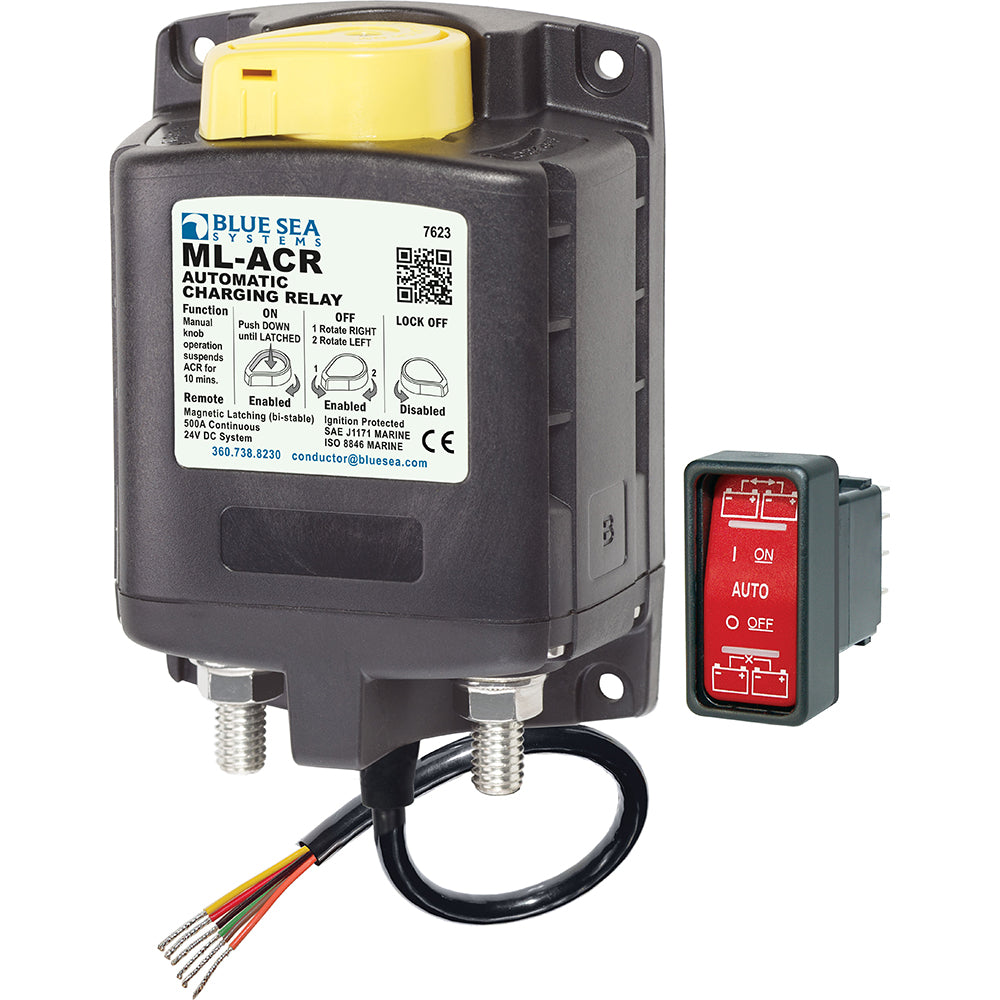

Blue Sea 7623 ML-Series Heavy Duty Automatic Charging Relay - 24V

7623

Manual Control: Yes
Coil Voltage: 24v

Features:

• Manual control switch provides an added level of safety allowing control with or without power, and offering "Locked Off" capability for servicing

• Includes ML-Series Remote Control Contura Switch PN 2146

• 500 Ampere continuous rating

• Magnetic Latch (ML)-ACR draws very low current (<10 mA to monitor terminal voltage) in the "ON" or "OFF" states, and draws moderate current for very short time when changing state

• Start Isolation (SI)-Can be configured for temporary isolation of House loads from Engine circuit during engine cranking to protect sensitive electronics

• Engine Isolation (EI)-Can be configured for isolation of two engines while both are running to protect engine electronics and maximize alternator output

• Senses charging on two battery banks

• Supports high-output alternators up to 500 Amps

• LED output to remotely indicate when batteries are combined, isolated, in voltage lockout, in Start or Engine isolation

• 3/8"-16 tin-plated copper studs for maximum conductivity and corrosion resistance

• 7/8" (22mm) stud length accepts multiple cable terminals

• Label recesses for circuit protection

• Silver alloy contacts provide high reliability for switching live loads
