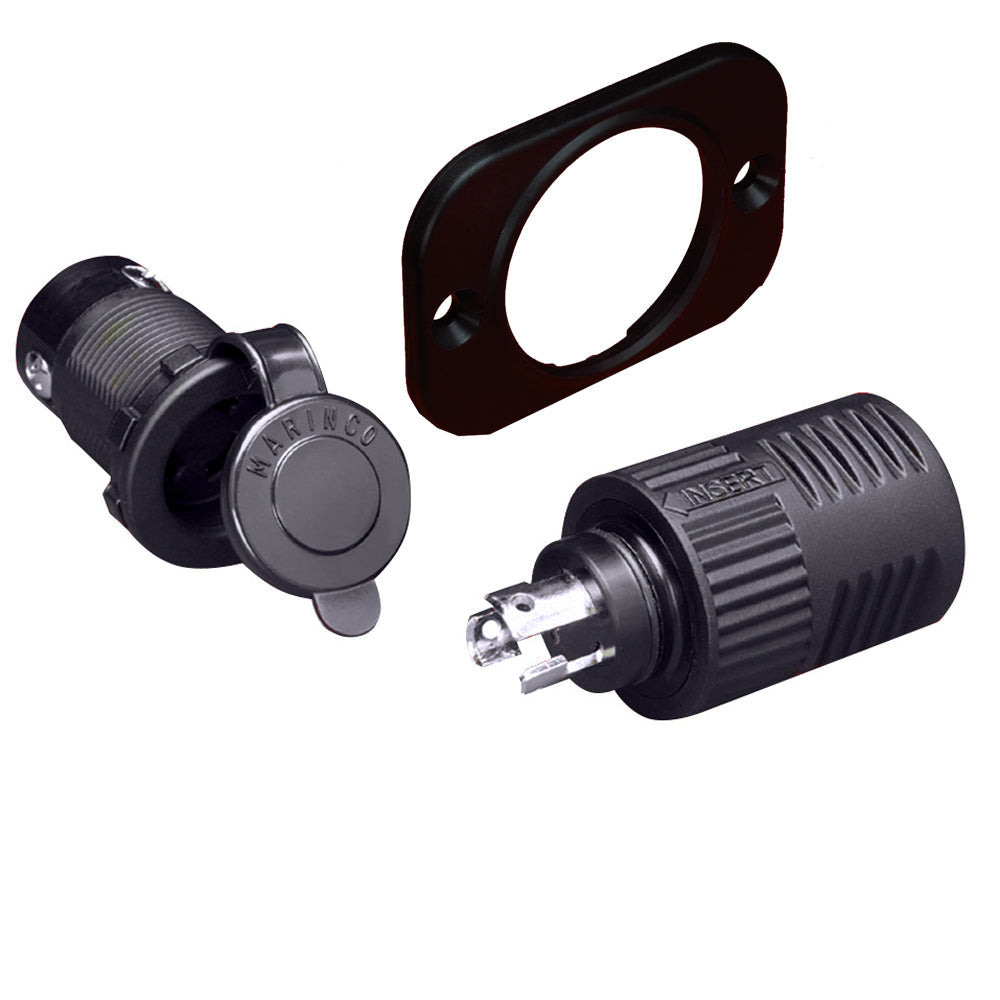

ConnectPro® Charging/Trolling System Receptacle & Plug
ConnectPro® Receptacle
- Universal design for 2 or 3-wire configuration 12, 24, 12/24, 24/36 or 36 volt systems
- Watertight sealing cap
- Corrosion resistant, plated brass electrical components
- Drain holes in receptacle keep water away from electrical components
- Perma-Lock screw terminals will not loosen under extreme hull vibration
- Standard 1-1/8" diameter mounting hole
- Easy to install, with supplied mounting plate for front panel installation, or locking ring for rear access installation
- Accepts 10 and 8 gauge wire
- Easily replaces other trolling motor plugs and receptacles
ConnectPro® Plug
- O-ring seal for waterproof connections
- Weather resistant plug cover
- Corrosion resistant, plated brass electrical components
- Accepts 16 to 8 gauge wire
- Ergonomic contoured grip for easy hook-up and ground blade alignment
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
Specifications:
- Type: Misc
- Box Dimensions: 2"H x 5"W x 9"L WT: 0.35 lbs
- UPC: 093344304668
Brochure (pdf)
