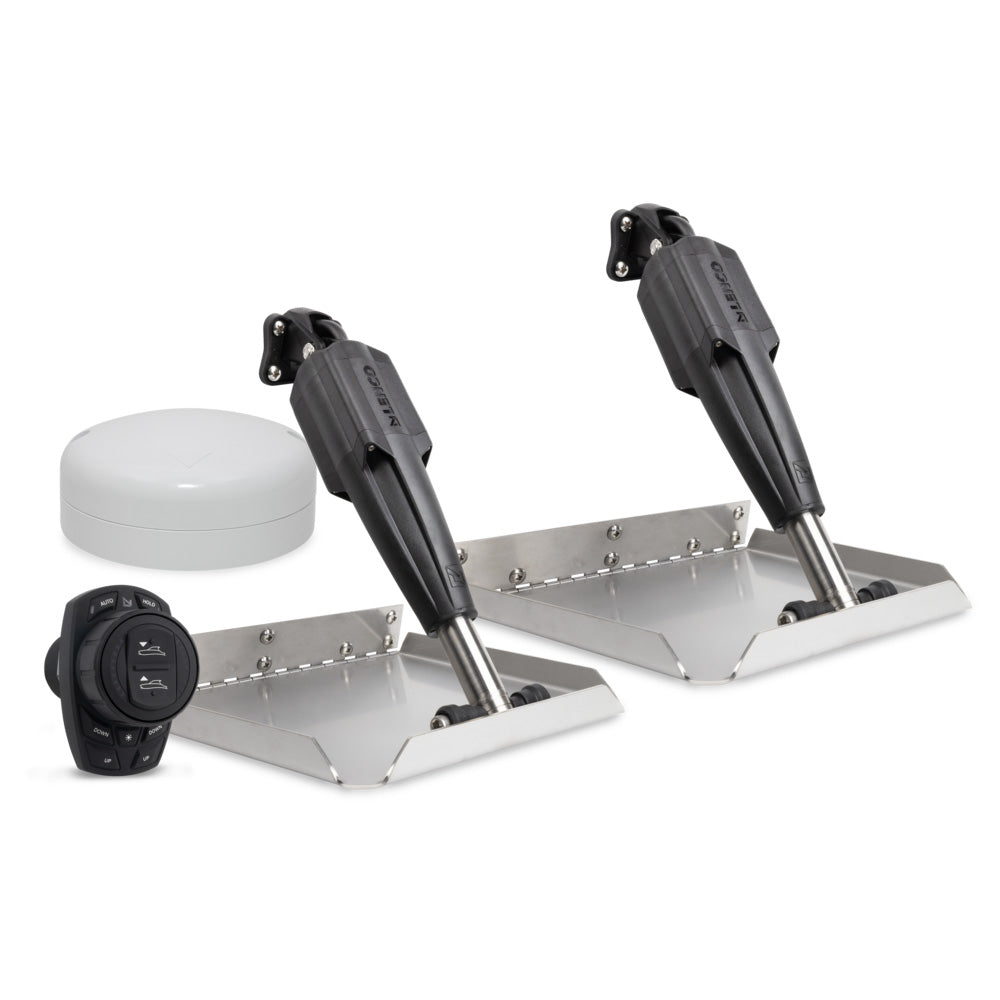

12"x12" Edge Mount Trim Tab Kit with Pro Control™ Auto
Specifications:
- Length x Width: 12"x12"
- Boat Length: 17'-30'
- Hinge Height: 2" (5.1cm)
- Minimum Transom Height: 11" (27.9cm)
- Keypad: Auto
Kit Includes:
- (1) Pro Control Auto Keypad Kit (15174-107)
- (1) Pro Control Auto IMU (15180-001)
- (2) 12-gauge 304 (2.7 mm) stainless steel standard finish blades:
- Standard blades - with a 5/8" (1.6 cm) flared trailing edge.
- Edge Mount blades - with 1" (2.5 cm) turned-up edges a 5-degree taper on both sides to the trailing edge) and a 1/8" (3.2 mm) diameter hinge pin.
- (2) 2.25” Stroke SD Pro Actuators, 11.5” pin to pin (15189-001)
- (6) Micro C Tee Connector (30267-001DD)
- Micro C Power Cable with Fuse and Ground (15197-101)
- (2) 6’ (1.82 m) Micro C Drop cables (15199-101), (1) 15’ (4.57 m) (30269-001 and (1) 25’ (7.62 m) (30269-004) Micro C Drop cables
- (2) 6 Pin Deutsch to Micro C Actuator Network Adapter Cable (30377-001)
- (2) 3' (.91 m) Pro Control Actuator Power Pigtail (30378-001)
- (1) Wake Signal Adapter for Non-Mercury Systems (15207-101)
- (2) Corrosion proof Upper Mounting Brackets with gland seal (15193-101)
- (2) Corrosion-proof Lower Mounting Brackets (15194-101)
