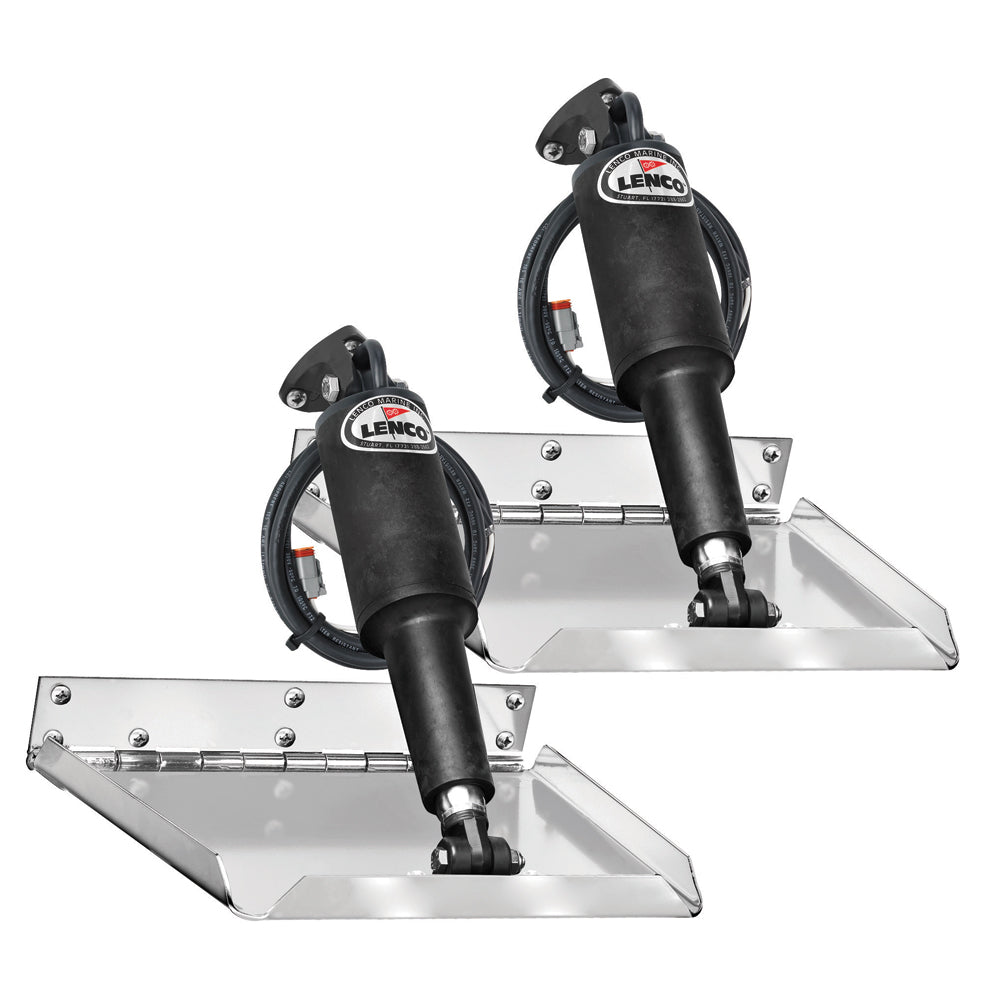

14" x 12" Standard Performance Trim Tab Kit w/o Switch Kit- 12V
Upgraded electro-polished trim blades with stouter 1/4" diameter hinge pin make these Performance Trim Tab Kits a cut above the base level Lenco Standard Mount Kits. Equipped with the same fast response electric actuators for precise control. Fully submersible with all Plug & Play Deutsch connections. Blades are Electro-Polished 12 gauge - 304 SS with 1" turned up edges (the 16" x 12" and the 18" x 14" have an 85 degree inside taper) and 1/4" diameter hinge pin. Kit includes Standard Actuators with 5/16" SS bolts. The actuators mount at the trailing edge of the blades
Kit Contents:
- 2 each of 12-gauge stainless steel Electro-Polished trim tab blades
- 2 each of #15054-001 actuators with 6' lead and Deutsch plugs
- 2 each of #30133-103 20' actuator extension wiring harnesses
- 2 each of #15085-001 (#116) upper mounting bracket with gland seal
- 2 each of #50014-001 (#119) lower mounting bracket
- 1 each of the Lenco owner’s / installation manual
- All necessary stainless steel mounting hardware
Specifications:
- Suggested Boat Length: 19' to 34'
- Length of Tab: 14"
- Width of Tab: 12"
- Minimum Transom Height: 11"
- Blades: 12 Gauge Stainless Steel
- Finish: Electro-Polished
- Switch Kit: Sold Separately
- Class: Fuel Efficient
- Compliance: CE Certified
- Compatibility: Any Boat
- Actuators: 12-volt
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
Specifications:
- Construction: Stainless Steel
- Box Dimensions: 7"H x 14"W x 25"L WT: 24 lbs
- UPC: 874847004602
