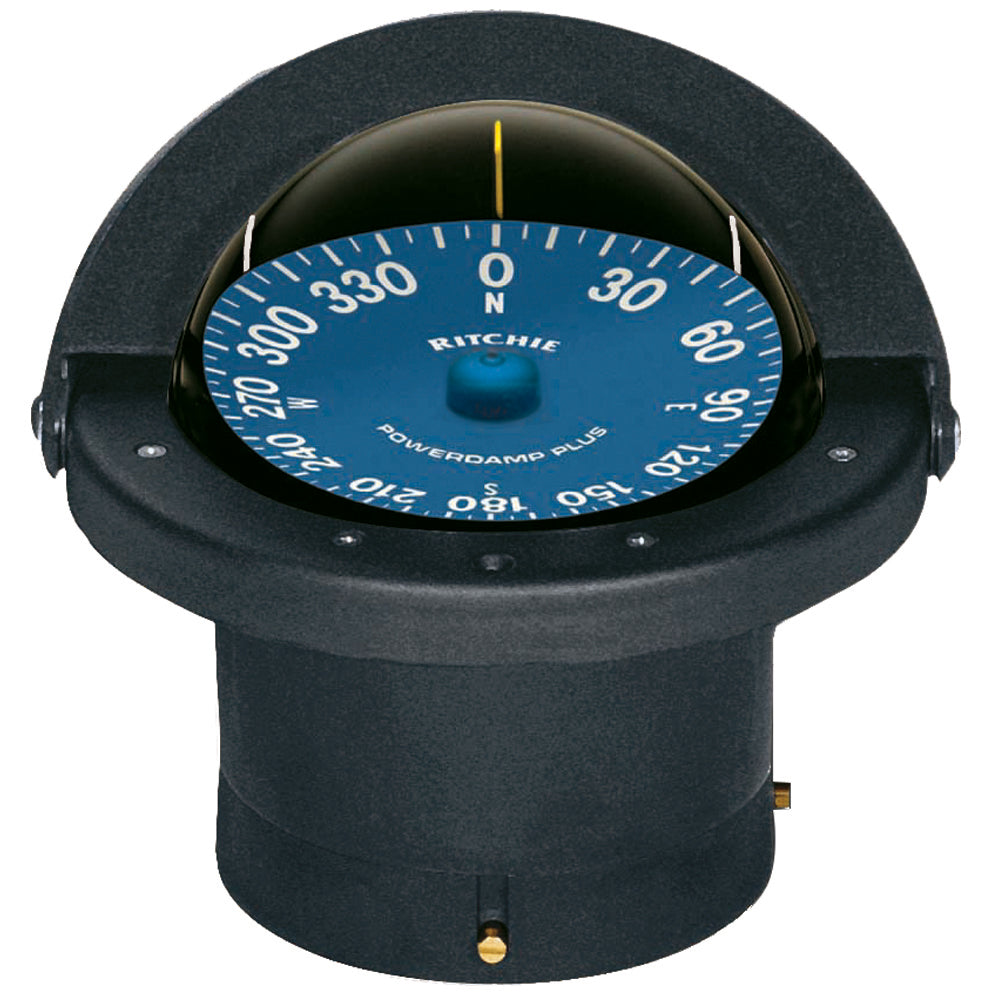

Ritchie SS-2000 SuperSport Compass - Flush Mount - Black

Supersport™ Compass

Developed for and tested on offshore race boats the SuperSport Series compasses feature the PowerDamp® Plus dial. This dial technology features the PowerDamp® dial skirt to prevent oscillation, larger DirectiveForce™ magnets for quick lock on and extra-large steel pivots and jewels for smooth fast action.

Features:

• 4 1/2″ (115 mm) PowerDamp Plus, High-Visibility Blue Dial with Extra Large White Numerals

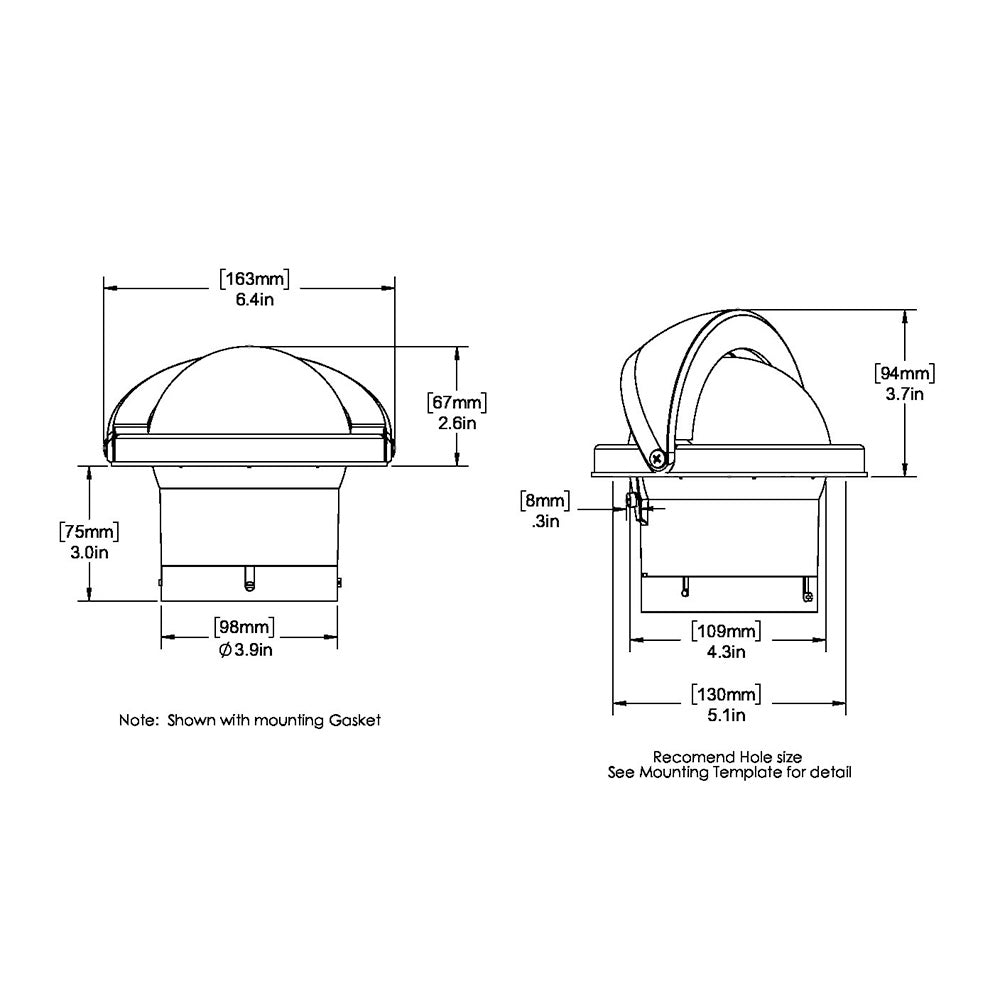

• Easily Installed, Fits 4.75″ (121 mm) to 5.125″ (130 mm) Mounting Hole
• Built-in Compensators to Easily Adjust for Deviation
• Internal Gimbal Systems for Maximum Stability During Adverse Pitch and Roll Conditions
• 12v Green LED lighting standard
• 45 Degree Lubber Lines
• 100% Repairable
• Exclusive 5-Year Ritchie Warranty

Approx. Shipping Weight: 2lbs 10oz (1.19kg)

Notes:

Comes standard with 12v lighting. 24 & 32v lighting options are available. Some custom built OEM models may have different lighting.

Specifications:

• Lubber Lines: Yes
• Backlight: Yes
• Read: Rear
• Mounting Style: Flush
• Box Dimensions: 7"H x 8"W x 8"L WT: 2.9 lbs
• UPC: 010342150011

Quick Guide (pdf)
Owner's Manual (pdf)
