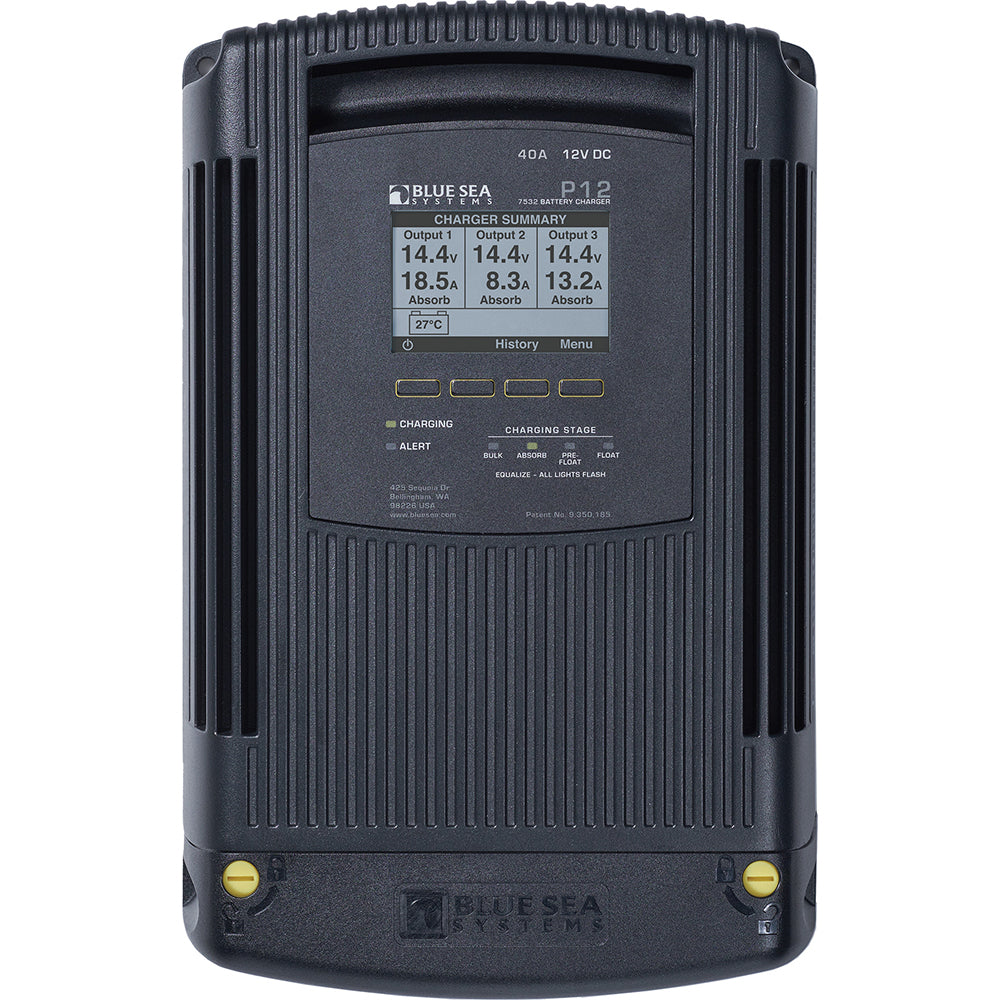

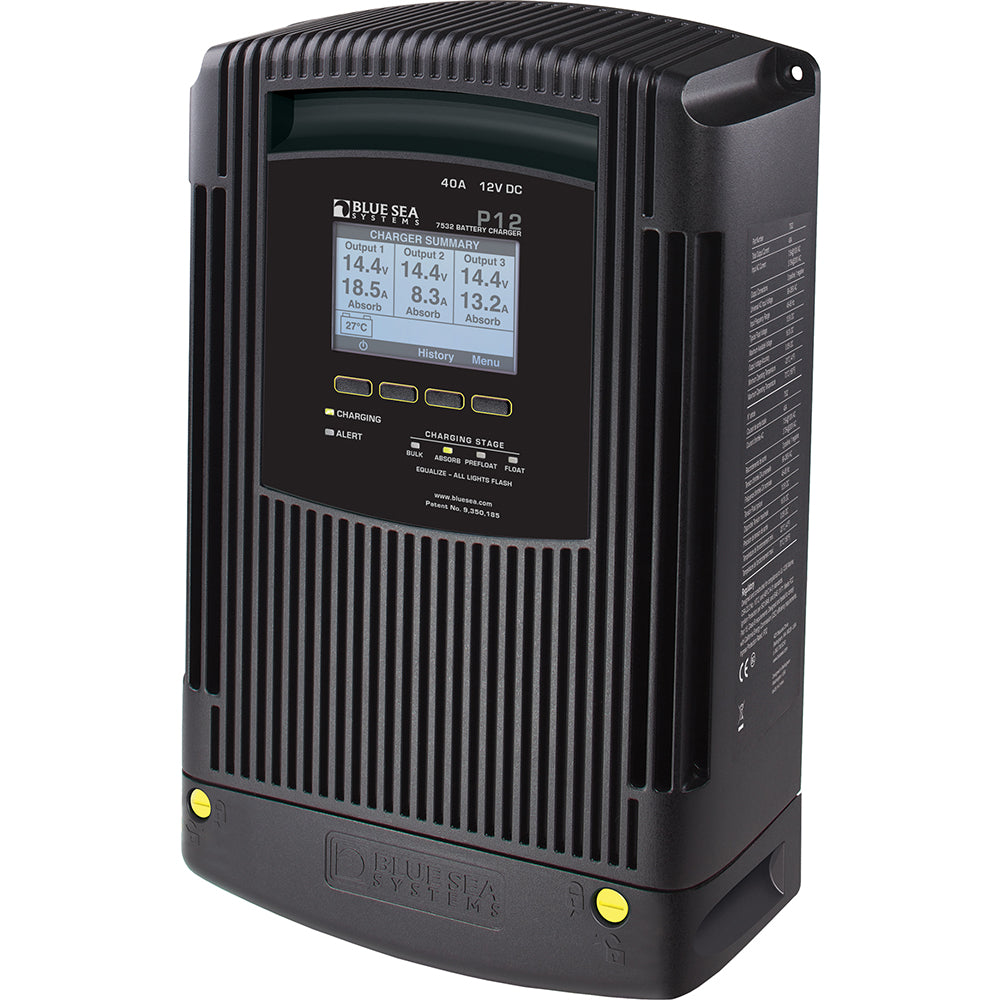

P12 Gen2 Battery Charger - 40A - 3-Bank
Features:
- Four stage, three output, dry mount design, for use in harsh environments.
- Rugged, finned aluminum case
- PreFloat™ stage prevents over charging
- Power factor corrected for efficient use of AC
- Intuitive diagnostic screens
- User defined charge profiles and customizable settings
- Provides charging for up to three battery banks
- Large, bright display
- Multi-language: English, French, German, Italian, Spanish
- Charge Coordination with Blue Sea Systems Automatic Charging Relays (ACR) controls ACR state ensuring proper float stage for each battery
- Battery Temperature Compensation - adjusts charge voltage based on battery temperature
- AC over and under voltage shut down and automatic restart
- Over and under battery temperature protection - charger will not operate if battery temperature rises above or falls below a set value
- DC over voltage and reverse polarity protection
- Surge and short circuit protection
Specifications:
- Total Output Current: 40A
- Input AC Current: 7.5A @ 100V AC / 3.75A @ 200V AC
- Maximum Output Voltage: 16V DC
- Nominal Voltage: 12V DC
- Ignition Protected: Yes
- Number of Outputs: 1 negative / 3 positive
- Universal AC Input Voltage: 90-265V AC
- AC Input Frequency: 45-65Hz
- Output Voltage Accuracy: 0.05V
- Typical Float Voltage:13.5V DC
- Minimum Operating Temperature: -20° C
- Maximum Operating Temperature: 70° C
- Minimum Storage Temperature: -30° C
- Maximum Storage Temperature: 80° C
- Battery Types: AGM / Flooded Lead Acid / Gel / TPPL (Thin Plate Pure Lead)
- Recommended for Battery Bank Sizes: 440Ah Maximum Example: 4 x Group 31 / 60Ah Minimum Example: 2 x Group 31
- Warranty: 5 Year
- Height: 13.03" (330.96 mm)
- Width: 8.46" (214.88 mm)
- Depth: 3.66" (92.96 mm)
- Weight: 13.00lb (5.9 kg)
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
Specifications:
- Charging Banks: 3
- Charger Output - Amps: 40a
- Charger Output Voltage: 12v
- Portable: No
- Charger Input - Voltage: 120/240v
- Box Dimensions: 7"H x 11"W x 18"L WT: 10.2 lbs
- UPC: 632085075323
