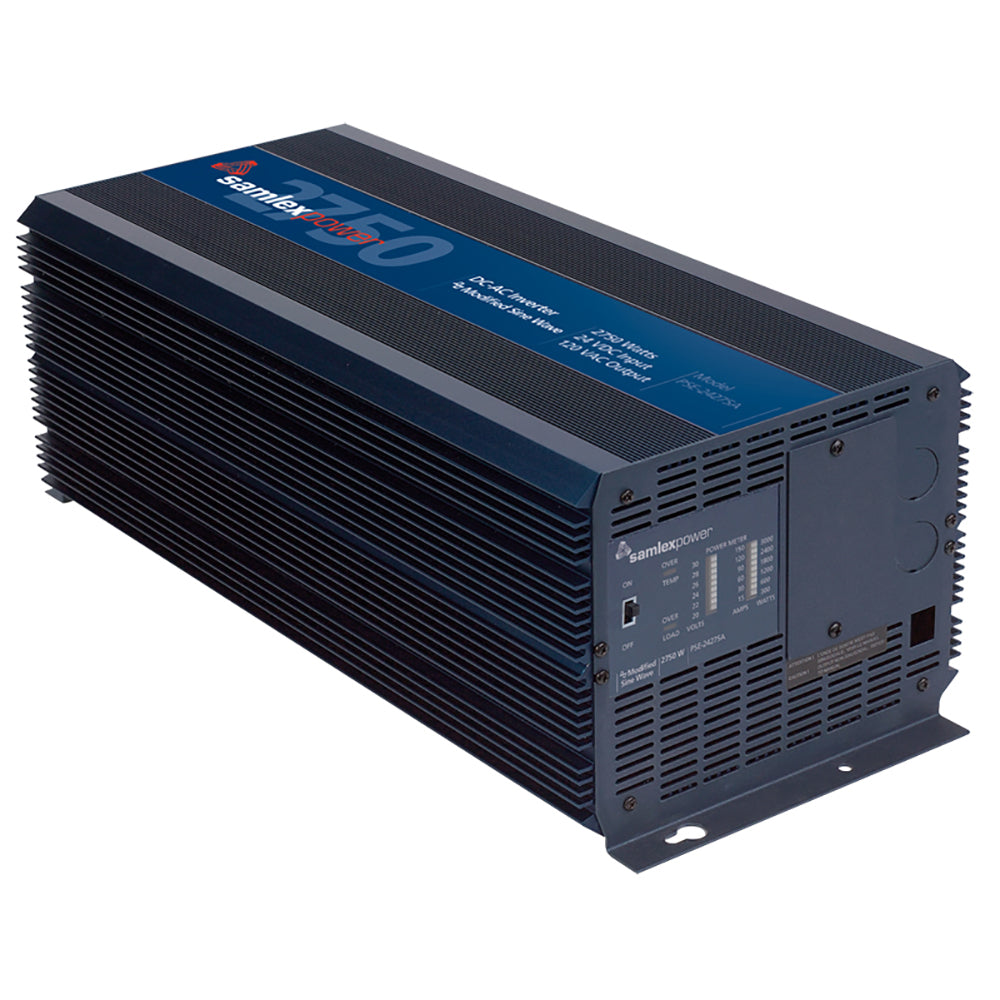

Samlex 2750W Modified Sine Wave Inverter - 24V

2750W Modified Sine Wave Inverter - 24V

PSE Series

This high efficiency modified sine-wave DC-AC inverter converts 24 Volts DC (Nominal) to 2750 watts of AC power at 120 Volts, 60 Hz. The unit comes with a set of battery cable lugs. Output AC power is available by means of hardwire connection (NEMA 5-15R receptacles with 15 Amp breaker optional accessory). Features include overload, over-temperature, low input and high input voltage protection. The front-end LED display indicates battery voltage and output power levels.

Features:

• High efficiency PWM design
• LED bar graphs indicate input voltage, input current and output power
• Temperature controlled cooling fan
• Low input voltage warning alarm
• Optional remote operation with Samlex Model RC-15 remote control (sold separately)
• Protections: high/low DC input voltage, over temperature and over load shut down
• High output power surge

Specifications:

• Input: 24 VDC
• Output: 120 VAC
• Watts: 2750 Watts
• Surge: 4500 Watts
• Outlets: 1
• Fuse: 15A x 12
• Remote Control: RC-15
• Weight: 16.2 (lbs)
• Weight: 7.35 (kg)
• Dimensions: 8.07 x 19.49 x 6.3 (in)
• Dimensions: 205 x 495 x 160 (mm)
• Warranty: 2 Year Limited

Applications:

• Service vehicles
• Mobile Offices
• Boats
• Recreation Vehicles, Camping
• Telecommunication
• Field work / Construction sites
• Solar power systems
• Emergency backup power
• Home electronics: TV, VCR, video games
• Computers, printers, monitors, fax machines
• Tools and appliances

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Inverter Cont. Output Wattage: 2750w
• Inverter Input Voltage: 24v
• Waveform: Modified Sine Wave
• Box Dimensions: 10"H x 11"W x 23"L WT: 20.5 lbs
• UPC: 622988071744
