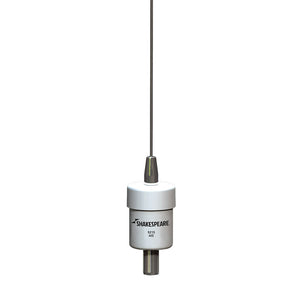

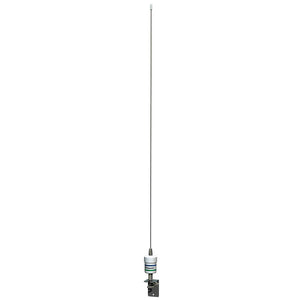

Shakespeare AIS 5215-AIS 36" Squatty Body Antenna f/Sailboats

Shakespeare Squatty Body®
Style 5215-AIS
3' (0.9m) VHF Marine Band 3dB

End-fed 1/2-wave stainless steel whip

Sailboat owners will love this version of their longtime favorite, our Style 5215. Its the same light weight, low-profile, stainless steel antenna, specially designed for masthead mounting and built with extra bandwidth for all popular AIS transceivers.

• Sealed, tin-plated copper wire coil

• Designed specifically for AIS transceivers

• SO-239 connector

• Stainless steel L-shaped bracket supplied for mounting

• One section

• For AIS applications

• Band:tVHF Marine Band

• Antenna Gain:t3dB

• Max. Input Power:t50 watts

• SWR:tnominally 1.5:1 at 162 MHz

• Bandwidth:t7 MHz within 2.0:1 VSWR

• Ferrule:tL-bracket and retaining nut, SO-239 connector

• Polarity:tVertical

• Impedance:t50 Ohms

• DC Ground:tNo DC Ground - The antenna will read open on continuity test.

• Shakespeare Limited Warranty:t2 years

Specifications:

• Antenna Band: AIS
• Length (Inches): 36"
• Box Dimensions: 2"H x 2"W x 40"L WT: 2 lbs
• UPC: 719441100810
