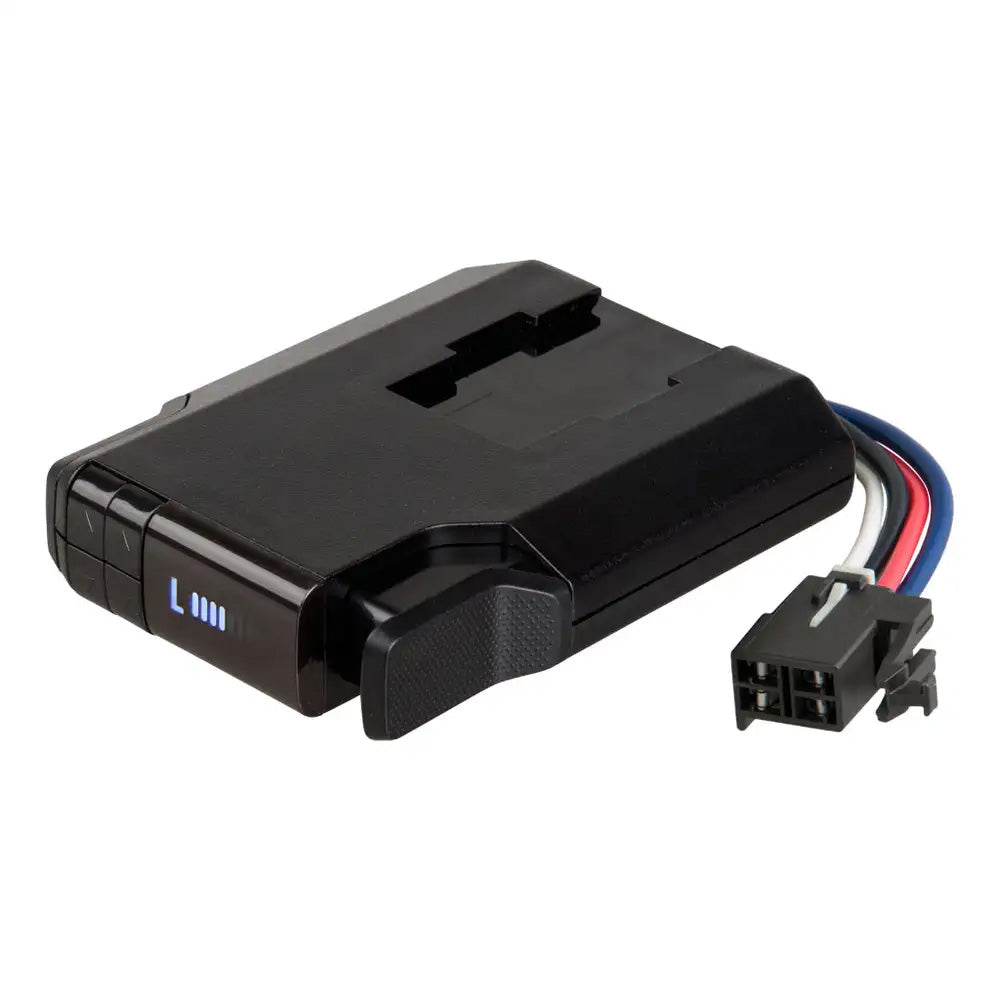

CURT Venturer Next Brake Control

Venturer Next Brake Control

The CURT Venturer NEXT is a powerful, compact, intuitive brake controller that provides dependable operation of the electric trailer brakes from within the cab of a vehicle. It features a sleek, modern design and a low-profile bracket for added clearance. Control 2–6 trailer brakes at a time (1-3 axles) with fully adjustable settings to adapt to a unique vehicle-trailer setup.

Venturer NEXT is a redesigned and enhanced iteration of CURT's popular Venturer brake controller. It's compatible with low-voltage, PWM, ABS, cruise control, and electric over hydraulic brakes, and its slim profile offers a functional and modern aesthetic that provides powerful control of trailer brakes at a user's fingertips without dominating the vehicle dash. The LED display shows power adjustments in 1.0 increments, so users can check the settings at a glance, and the brightness is adjustable for day or night towing. It also comes with a unique mounting bracket that further enhances the unit’s clearance to remain unobtrusive.

Venturer NEXT is a time-delay brake controller with fully adjustable power and ramp time. Choose from 10 different gain settings and nine load settings to adjust to a specific towing situation. The ramp-up is displayed with LED indicators, and the unit has adjustable brightness for daytime or nighttime use. This time-based brake controller is quick and simple to set up, using no internal moving parts and requiring zero leveling. It can be mounted anywhere needed in the vehicle and at any angle. It is designed to be installed using a CURT brake controller wiring harness for plug-and-play convenience (sold separately).

Features:

• Slim, low-profile design for a functional, modern aesthetic
• Unique bracket system for improved dash clearance
• Fully adjustable power and ramp time
• Operates 2-6 trailer brakes at a time (1-3 axles)
• No internal moving parts and no leveling are required
• 10 gain settings and 9 load settings to adapt to various driving conditions
• LED indicator lengthens as controller applies power
• The digital display shows power adjustments in 1.0 increments
• Adjustable brightness for optimal visibility
• Mounts anywhere in the vehicle, at any angle
• Compatible with low-volt, PWM, ABS, cruise control, and electric over hydraulic
• Auto-sleep mode prevents battery drain after five minutes of idle time
• Plug-and-play installation with a vehicle-specific quick plug harness (sold separately)

Notes:

• Includes mounting hardware

Specifications:

• Axles: 1-3 Axles
• Display: LCD screen
• Hub Warehouse: D25
• Installation Difficulty: Novice
• Warranty: Limited Lifetime
