PSS Shaft Seals — Stop Drips Before They Start and Keep Your Bilge Dry on Every Voyage
PSS shaft seals are the gold standard for boaters who want a reliable, drip-free alternative to traditional stuffing boxes on inboard and shaft-drive vessels. Engineered around a face-seal design that works with your rotating prop shaft, these seals eliminate the slow, steady drip that packing gland systems are known for — meaning a drier bilge, less maintenance underway, and more time focused on the water ahead. OutdoorUp carries the full PSS lineup so you can match the right seal to your exact shaft and tube dimensions.
Why Boaters Choose PSS Shaft Seals Over Traditional Packing
- Keep your bilge genuinely dry — the face-seal design creates a positive seal against the rotating shaft, eliminating the intentional drip that stuffing boxes require to stay lubricated.
- Reduce routine maintenance stops — no repacking, no periodic tightening; ideal for cruisers and liveaboards who want fewer haul-outs and more time on passage.
- Fit twin-engine setups confidently — available in multiple shaft and tube diameter combinations, so twin-screw powerboats can seal both shafts with properly sized units rather than forcing an ill-fitting compromise.
- Upgrade an aging stuffing box on a classic sailboat — the flexible bellows design accommodates minor shaft misalignment, making PSS seals a practical retrofit on older hulls where perfect alignment is hard to guarantee.
- Peace of mind at anchor or on a mooring — because there's no drip rate to monitor, the boat can sit unattended without accumulating bilge water from the shaft log.
Choosing the Right PSS Shaft Seal for Your Boat
Sizing is the single most important step. You'll need two measurements before you order: your shaft diameter and your shaft log (tube) inside diameter. PSS seals are sized to match both dimensions precisely — using an undersized or oversized seal will compromise the seal's integrity and potentially damage the bellows.

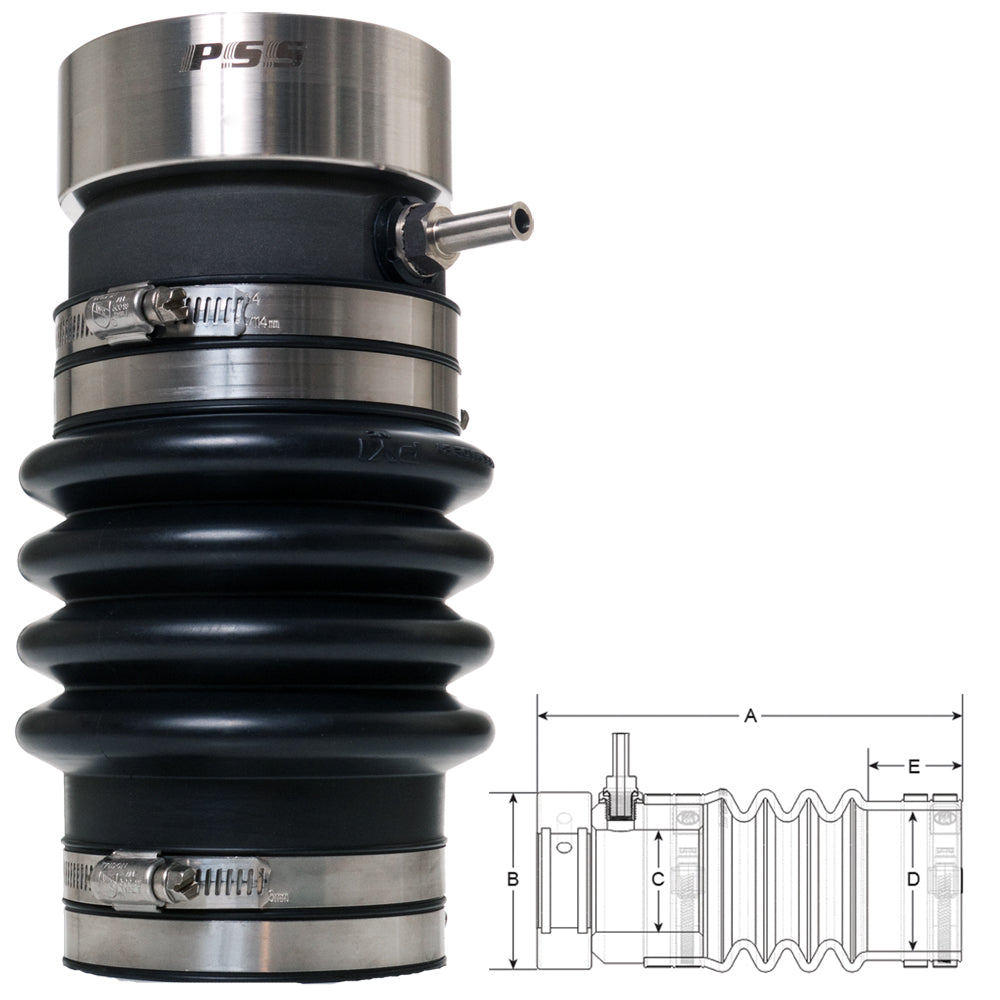

For smaller inboard vessels and auxiliary sailboats, the PSS Shaft Seal for a 1-1/2" shaft and 2-1/2" tube is a common fit. Mid-range powerboats and larger auxiliaries often call for the PSS Shaft Seal sized for a 2" shaft and 3-1/4" tube. Bigger displacement powerboats and commercial-grade applications typically require the PSS Shaft Seal built for a 2-1/2" shaft and 4" tube. When in doubt, measure twice and consult your boat's documentation or a qualified marine mechanic before purchasing.
Frequently Asked Questions about PSS Shaft Seal
-
A shaft seal is a watertight sealing device that fits around a boat's propeller shaft where it passes through the hull, preventing water from entering the vessel. Unlike traditional stuffing boxes that require constant drip adjustment, shaft seals use a rotating face seal design to keep bilges dry without ongoing maintenance.
-
Shaft seals are designed for boat owners who want a drip-free, low-maintenance alternative to conventional stuffing boxes. They are especially well-suited for sailors and powerboat owners who store their vessels for extended periods or who want to reduce bilge water accumulation and the need for frequent packing adjustments.
-
Choose a shaft seal by matching two key measurements: your propeller shaft diameter and your stern tube outer diameter. Both measurements must align with the seal's listed specifications, so measure carefully before purchasing. Using the wrong size can result in improper fit, leaking, or damage to the shaft or tube.
-
Install a shaft seal by sliding the rotor onto the propeller shaft and securing the stator to the stern tube, then connecting the two components with the bellows assembly. The seal should be aligned carefully to avoid stress on the bellows. Always follow the manufacturer's installation guide and inspect all hose clamps for proper torque before launching.
-
Yes, shaft seals are generally compatible with both fiberglass and metal stern tubes, as long as the stern tube outer diameter matches the seal's specified size. Always verify the exact tube diameter before ordering, since a proper fit around the tube is critical for a watertight seal and long-term performance.
-
Because the rotating face seal generates friction during operation, shaft seals require a continuous flow of water to lubricate and cool the sealing faces. Most installations draw this cooling water directly from the stuffing box area or a dedicated water supply. Running a shaft seal dry, even briefly, can cause permanent damage to the seal faces.
-
Shaft seals offer a completely drip-free design, while traditional stuffing boxes are intentionally adjusted to drip slowly to provide lubrication and cooling. Shaft seals require less routine maintenance once installed, but they do need periodic inspection of the bellows and hose clamps. Stuffing boxes cost less upfront but demand more frequent attention throughout the boating season.
-
Yes, shaft seals do require periodic maintenance even though they are largely self-managing during normal use. Boat owners should inspect the bellows for cracking or wear, check hose clamps for corrosion and proper tension, and verify that cooling water flow is unobstructed at the start of each season and after extended storage.
-
Shaft seals are typically constructed with a rubber bellows, stainless steel or carbon sealing faces, and corrosion-resistant hardware designed to hold up in a marine environment. The bellows material is especially important because it must remain flexible and watertight over years of use in both fresh and saltwater conditions.
-
Shaft seals are worth the investment for most boat owners because a drip-free design eliminates the ongoing cost and labor of repacking a stuffing box season after season. The reduced bilge water also means less wear on bilge pumps and a drier, cleaner bilge overall. For boats stored on a mooring or in the water long-term, the value is especially clear.
