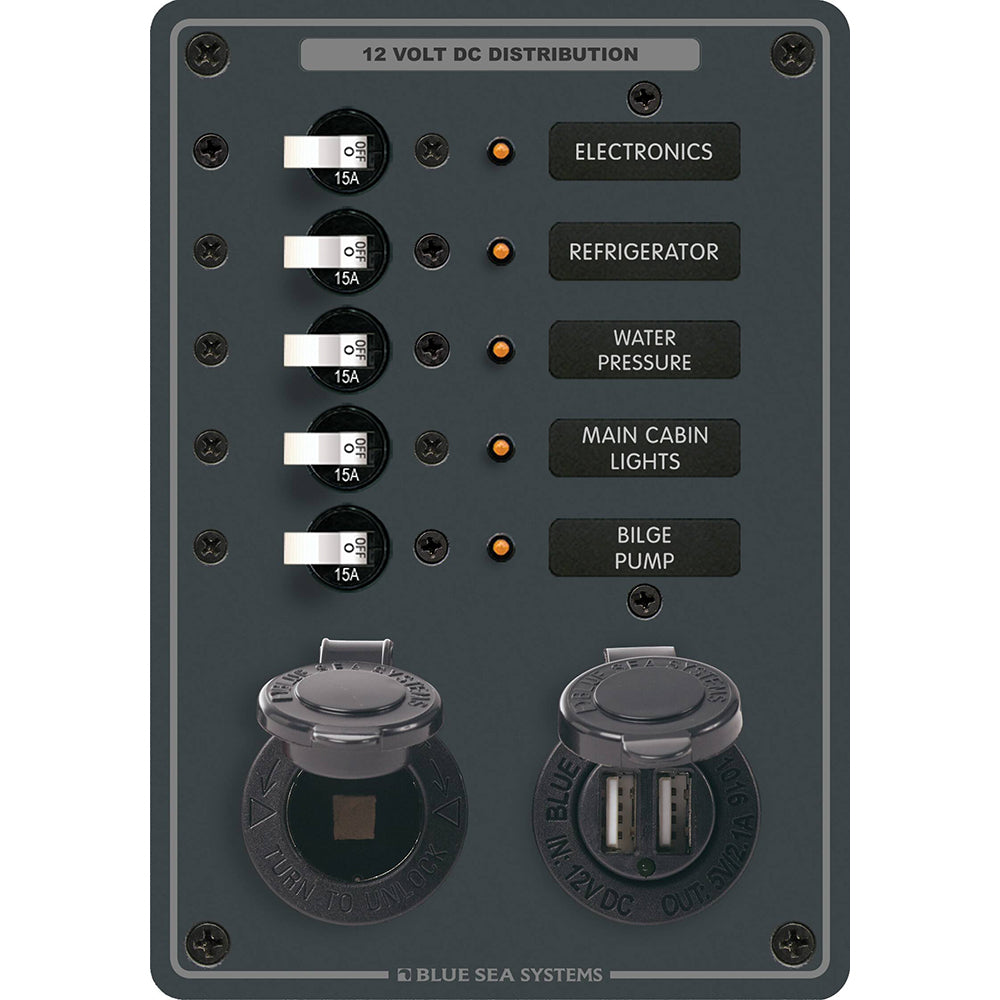

Blue Sea 8120 - 5 Position 12V Panel w/Dual USB 12V Socket

8120 - 5 Position 12V Panel w/Dual USB & 12V Socket

Part of the Blue Sea Systems Battery Management Panels.  Distribute current from a high amperage source to lower amperage circuits.

Features:

• ON-indicating LEDs
  • Backlit label positions
• All positive, negative, and grounding buses installed, fully pre-wired

Specifications:

• Positions - Five (5)
• Nominal Voltage - 12V DC
• Maximum Amperage - 50A
• Circuit Breaker Type - Magnetic Hydraulic - Trip Free
• USB Output - 12/24V Dual USB
• Socket Output - 12V Dash socket
• Dimensions (H x W x D) - 7.5" x 5.25" x 2.5" (191 x 133 x 64mm)

In the Box:

• 8120 Panel
• Instruction Manual

*Sold as an Individual

Specifications:

• AC/DC: DC
• Max Breaker Quantity: 5
• Voltage: 12
• Box Dimensions: 5"H x 7"W x 12"L WT: 1.95 lbs
• UPC: 632085081201
